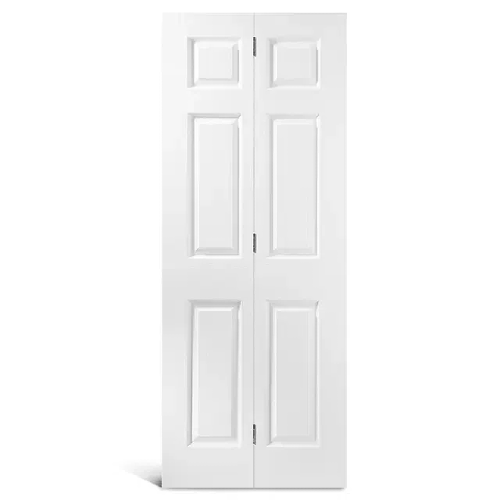

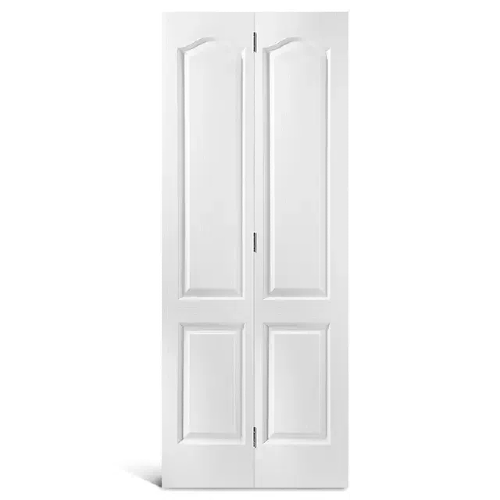

Bifold doors are increasingly popular in modern homes and commercial spaces due to their ability to maximize space, improve accessibility, and create seamless transitions between rooms or indoor and outdoor areas. A bifold door consists of two or more panels connected with hinges that fold neatly to one side when opened. This makes them perfect for wardrobes, closets, kitchens, living rooms, patios, and even office partitions.
However, the performance and longevity of a bifold door depend heavily on proper installation. Correct alignment ensures smooth operation, prevents premature wear, and enhances both functionality and appearance. Whether you’re a DIY enthusiast planning to install a bifold door on your own or someone considering professional assistance, this comprehensive guide will walk you through every essential step of the process, highlighting tools, techniques, and maintenance practices for long-term success.
Before starting the installation, preparing the right tools and materials ensures efficiency and accuracy. Skipping or improvising with incorrect equipment may cause misalignment or even permanent damage to your new bifold door.
Tape measure for accurate doorway measurements.
Carpenter’s level to ensure frames and tracks are perfectly horizontal.
Power drill with multiple drill bits for secure fastening.
Screwdriver set (manual or electric) for adjustments and final tightening.
Hammer and rubber mallet to gently secure brackets without scratching.
Pencil or chalk for precise marking.
Hacksaw to trim the track if your doorway is narrower than the standard kit.
A complete bifold door kit, including panels, hinges, and track system.
Pivot brackets and pivot pins, which allow the panels to swing and fold smoothly.
Screws and wall plugs designed for the material of your frame.
Handles or knobs suited to the door’s style and purpose.
Finishing supplies such as wood filler, primer, paint, or sealant.
Safety goggles to protect your eyes from dust and debris.
Gloves for better grip and hand protection.
Dust mask, especially if you need to saw or sand surfaces.
Pro Tip: Always double-check that all parts listed in the instruction manual are included in the kit before beginning the installation. Missing components may delay the project and compromise stability.
A successful installation starts with accurate measurements and preparation of the door opening. Small errors at this stage can cause ongoing issues such as sticking, uneven folding, or gaps between panels.
Measure both width and height at three points (top, middle, bottom for width; left, center, right for height).
Use the smallest measurement to ensure the door will fit.
Allow at least 1/2 inch of clearance at both the top and bottom for smooth folding.
Place a carpenter’s level along both vertical sides of the frame.
If the bubble drifts away from center, use shims to bring the frame into plumb.
Pay attention to the floor level beneath the opening. Even a slight slope can affect panel movement.
Sand down or trim obstructive areas that prevent free door movement.
Install filler strips if the opening is significantly wider than the bifold door track.
Ensure there are no nails, screws, or protruding surfaces inside the frame that could interfere with the hinges or pivots.
Measure the doorway width and cut the track accordingly.
Position the track flush with the upper frame and pre-drill holes before securing with screws.
Use a level to confirm the track is perfectly straight, as even minor deviations can cause sticking.
Install the top pivot bracket inside the track, leaving room for adjustment later.
Position the bottom pivot bracket securely on the floor or jamb.
Confirm brackets are square with the frame to avoid uneven folding.
Insert the top pivot pin into the track bracket carefully, without forcing.
Align the bottom pivot pin into the floor bracket and confirm both are seated properly.
Swing the door open and closed gently to check for free movement before tightening screws.
Use a screwdriver to adjust pivot pins for desired height.
Check that panels are parallel with the frame edges.
Adjust hinges if one panel leans inward or outward.
Install stops at the closing point to prevent doors from slamming into the frame.
Add a bottom guide to keep panels aligned and stable during operation.
Ensure all guides are secure and not overly tight, allowing panels to glide naturally.
Fine-tuning after installation ensures the bifold door operates smoothly for years to come.
Check for consistent gaps between the door and frame.
Adjust pivot points gradually to avoid overcorrecting.
Make small incremental changes and test after each adjustment.
Tighten all screws, as loose hinges are a common cause of rattling.
Replace stripped screws with slightly longer ones for stronger grip.
Ensure hinges are not over-tightened, which can restrict panel movement.
Issue | Possible Cause | Solution |
Door sticks while folding | Track is uneven or obstructed | Clean or re-level track |
Uneven panel gaps | Pivot brackets misaligned | Adjust pivot screws |
Door does not close fully | Stops or guides misplaced | Reposition correctly |
Noisy operation | Lack of lubrication on hinges | Apply silicone spray |
The final details elevate the overall look and usability of your bifold door.
Select handles that complement your interior style while remaining functional.
For outdoor bifold doors, consider handles with integrated locks for security.
Place handles at a comfortable height, typically around waist level.
Apply primer before painting to prevent peeling or cracking.
Choose moisture-resistant paint for bathrooms and kitchens.
Use high-quality brushes or rollers for an even finish.
Match the door finish to existing trim for a cohesive look.
Consider decorative glass or frosted panels to enhance privacy without sacrificing light.
Pay attention to hardware finishes; polished chrome or matte black can drastically change aesthetics.
Bifold doors require routine care to maintain performance and extend their lifespan.
Cleaning: Use a damp cloth to clean tracks and panels; avoid abrasive cleaners.
Lubrication: Apply silicone-based spray every six months to pivots and hinges. Avoid oil-based lubricants as they attract dust.
Inspection: Check all screws, brackets, and pivots at least once a year. Tighten or replace as needed.
Preventive Care: Train household members not to force or slam the door. Ensure children use handles rather than pushing on panels.
Extra Tip: If your bifold doors are near outdoor areas, inspect weatherstripping regularly and replace it if worn to maintain insulation and prevent drafts.
Sometimes, hiring a professional installer can be more efficient than a DIY approach, especially for larger or more complex bifold door systems.
Pros
Lower cost since labor is not included.
Ability to work at your own pace.
Personal satisfaction in completing the project.
Cons
Steeper learning curve, especially for first-time installers.
Requires access to proper tools and skills.
Errors may lead to costly repairs or replacements.
Pros
Precision and speed thanks to trained expertise.
Assurance that doors are installed according to manufacturer standards.
Often includes a warranty for both parts and labor.
Cons
Higher upfront cost.
Limited flexibility in scheduling compared to DIY.
Factor | DIY Installation | Professional Installation |
Cost | Lower (tools + materials only) | Higher (labor fees included) |
Time | Several hours to a full day | Typically 2–4 hours |
Skill Requirement | Moderate to High | None required |
Precision | Depends on experience | Consistently accurate |
Warranty | Not included | Usually offered |
Installing a bifold door can transform the functionality and style of your space, whether in a residential apartment, a patio entrance, or a commercial environment. With the right tools, accurate measurements, and careful adjustments, DIY installation is possible. However, professional assistance often provides quicker results and greater accuracy, ensuring smooth operation for years to come.
For those seeking high-quality bifold doors, Jiangshan Oupai Door Industry Co., Ltd. is a trusted manufacturer offering a wide range of customizable solutions. Their products combine durability, style, and practicality, making them an excellent choice for homeowners and businesses alike.
Explore their collection today to find the perfect bifold door solution for your next project.
